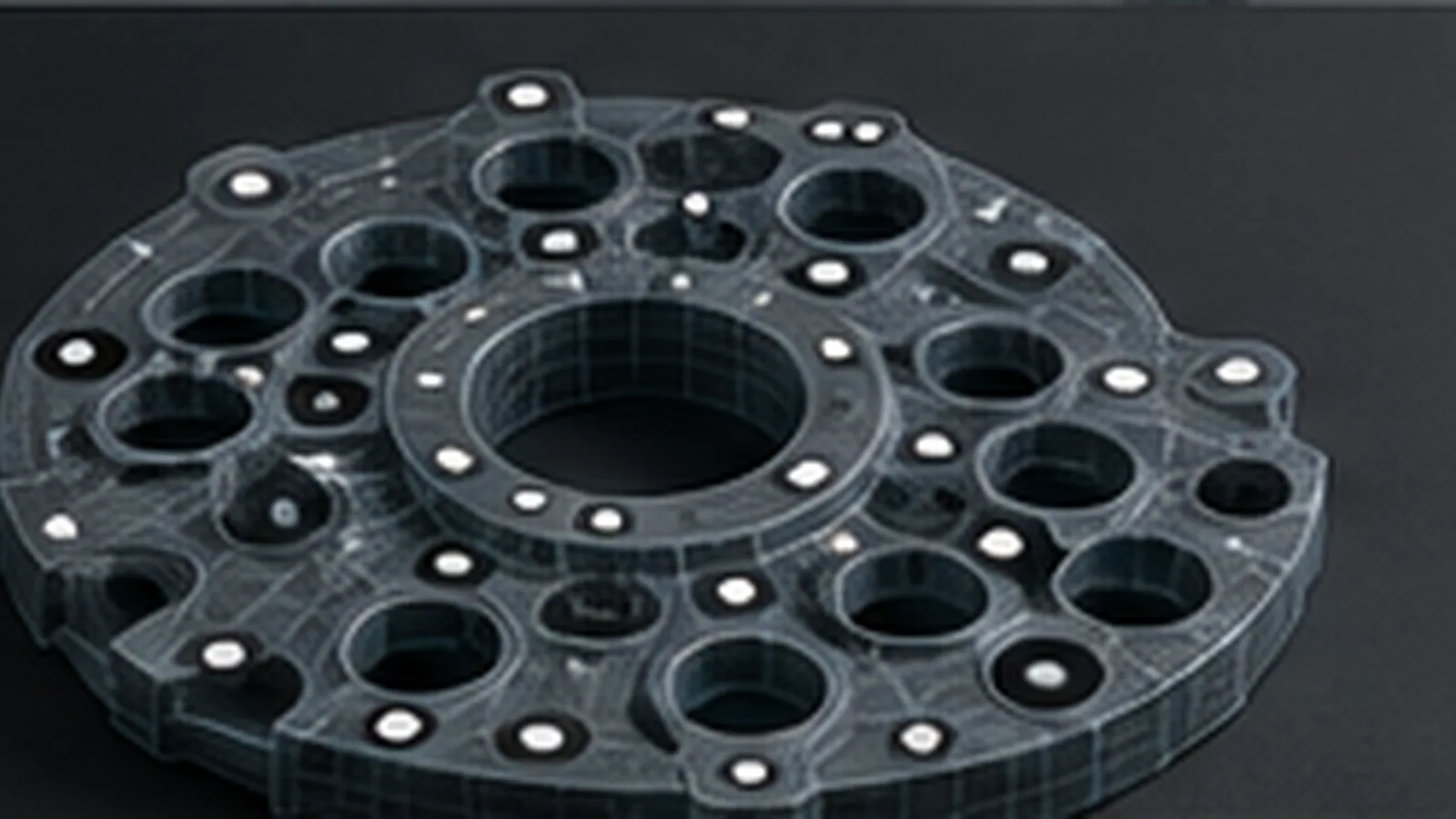

3D Scanning Markers: Placement for Stable Tracking Without Drift

Markers are not accuracy magic. Their primary role is to provide unique spatial references and stabilize scanner pose.

When markers help

Smooth, feature-poor, symmetric and repetitive surfaces are classic marker candidates. Richly textured castings may already track well through geometry.

Random beats tidy

Shining 3D recommends even but irregular placement. Straight rows, grids and symmetric clusters can create ambiguous patterns.

Keep several markers in view

Several Shining 3D systems recommend at least four visible markers in overlapping regions. Build a continuous reference chain so new markers appear before old ones leave the field of view.

Marker size and distance

Markers must appear sufficiently large and sharp in the camera image. Tiny dots can work close up and fail at longer working distances.

Avoid strong curvature and edges

Markers should appear close to circular. Strong curvature distorts them; edges hide part of the target. Dirty or damaged markers further reduce recognition.

On the object or around it?

Small objects can sit on a marker-covered turntable. Large objects can use removable paper tape, keeping critical functional surfaces clear.

Tracking quality is not surface quality

Stable marker tracking does not solve reflections or transparency. Use markers for pose and surface preparation for optical capture.

Why symmetric marker fields are weak

If the same four-marker geometry repeats across the object, tracking can encounter multiple plausible matches. Irregular patterns reduce ambiguity. Professional marker layouts therefore look intentionally random.

You do not need to cover the whole object

What matters is the path the scanner follows. A continuous corridor of markers can be enough for a long component if sufficient references remain visible at every step.

Turntables: markers on the base instead of the part

For small objects, a randomly marked turntable or plate keeps adhesive targets off the component while still providing pose references.

Sensitive surfaces

On painted, historic or delicate objects, test adhesive behavior first. Removable paper tape can act as an intermediate carrier for markers.

How to recognize tracking drift

Drift may develop gradually rather than as one obvious jump. Holes become slightly oval, parallel faces diverge or the end of a loop no longer matches the beginning. Returning to a known area is a useful closure test.

Marker artifacts in the mesh

Software may remove or fill marker regions automatically. On functional surfaces, verify that this repair did not change the intended contour.

Large-part rule

Markers distributed across slightly different depths can provide stronger spatial cues than a single perfectly flat plane, as long as the targets themselves are not distorted by strong curvature.

The most useful current marker rule: shared references between frames

Creality’s current guidance is unusually concrete: consecutive frames should share at least four common markers. This is more useful than a universal centimeter spacing because the correct pattern depends on field of view and working distance.

Why random placement is technically stronger

Do not arrange markers in straight lines, circles, triangles or a neat grid. Creality warns that regular patterns can create multiple similar constellations and increase stitching ambiguity. An irregular pattern provides a more unique spatial signature.

Using 3 mm and 6 mm markers

Current Creality workflows commonly use 3 mm and 6 mm inner-diameter markers. Larger markers suit larger parts and longer working distances; smaller markers fit narrow areas, grooves and smaller objects. They can be mixed as long as recognition remains reliable.

Global Marker Scan for larger parts

For medium-to-large objects around 250 × 250 × 250 mm and above, Creality recommends capturing the global marker framework first in supported workflows and then scanning the point cloud. This establishes a stable spatial reference and can reduce memory use and drift.

Marker towers, magnetic targets and non-contact references

Markers do not always need adhesive contact. Marker towers, magnetic references and a marked turntable can protect painted, delicate or visible surfaces. For small objects, all markers may sit on the base rather than on the part itself.

Exposure can masquerade as a marker-count problem

If software reports “not enough markers” despite dense coverage, check the marker image before adding more. Creality specifically lists over- and underexposure as causes of failed marker recognition.

Pre-scan test: move the scanner along the planned path before recording. If four or more markers remain reliably visible throughout and the pattern has no obvious repetitions, tracking is usually much more robust.

Why Payo / Tensile Creator is useful here

Payo’s videos complement manufacturer documentation by showing marker spacing, real fields of view and full workflows on engineering parts. LayerCompass uses those observations as practical context while checking mode requirements and software rules against the current manufacturer wiki.

Keep markers away from functional geometry

Place markers on broad, flat or gently curved regions whenever possible. Creality advises against covering holes, engravings, sharp edges and right angles. Poor placement can both reduce marker recognition and hide the exact feature needed later for reverse engineering.

Marker strategy for automotive and large parts

On bumpers, dashboard components and large housings, a continuous marker path is more important than maximum density everywhere. Plan the scan route and add references where geometry becomes repetitive or the direction changes. Supported Creality workflows can capture the global marker network first and scan the surface against it afterwards.

Inspect areas where markers were removed

Scanning software can often remove recognized markers during fusion or meshing, but those reconstructed patches still deserve inspection. A marker placed on a strong curvature or critical surface can leave a small artificial depression or bulge after removal.

Conclusion

Think in overlapping unique reference patterns, not maximum marker count.

Continue the 3D scanning cluster: choose a scanner · laser vs infrared · difficult surfaces · markers & tracking · point cloud → mesh · scan → CAD · scan → print

Sources & current status

Updated August 2026.

Frequently asked questions

How many markers should be visible?

It depends on the scanner. Shining 3D recommends at least four simultaneously visible markers for several systems.

Should markers be placed in rows?

No. Irregular random distribution creates more unique tracking patterns.

Can markers be placed on tape?

Yes. Removable paper tape is practical for large or sensitive objects.
